Vertical Lifelines
Retractable web lanyard with polyester webbing with swivel
- Affordably priced—Spider’s line of retractables provides a better value than competitive units.
- Quick-activating braking mechanism—arrests free-fall to less than 2 ft (0.6 m), requires less fall clearance than a shock-absorbing lanyard and provides for a quick, safe rescue
- Variety of working lengths—lifelines available in 9-, 10-, 11-, 20-, 30-, 50- and 65 ft (2.7-, 3-, 3.4-, 6.1-, 9.1-, 15.2- and 19.8 m)
- No annual factory re-certification required—lowers cost of ownership and increases productivity (except in Canada where CSA currently requires annual factory re-certification)
Specifications
| Part Number | Weight | Length | Material |
|---|---|---|---|
| BD-00022 | 3.1 lb (1.4 kg) | 9 ft (2.7 m) | Synthetic Webbing |

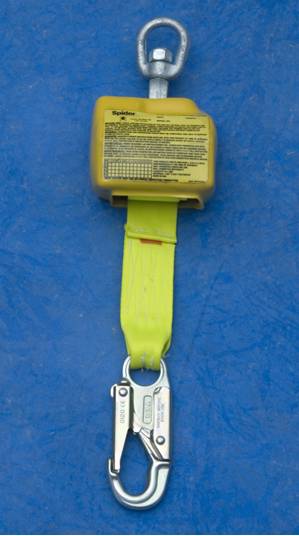

| BD-00010 | 2.3 lb (1 kg) | 10 ft (3 m) | Synthetic Webbing |
| BD-00012 | 2.6 lb (1.2 kg) | 11 ft (3.4 m) | Synthetic Webbing |
| BD-00013 | 8 lb (3.6 kg) | 20 ft (6.1 m) | Synthetic Webbing |

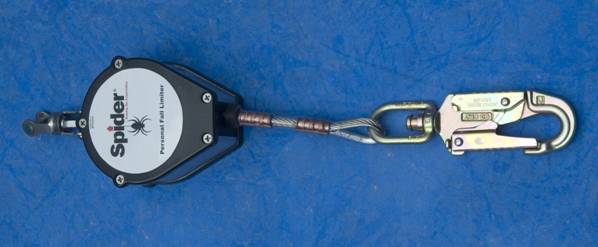

| BD-00021 | 4.5 lb (2 kg) | 9 ft (2.7 m) | Galvanized Steel Cable |
| BD-00003 | 11 lb (5 kg) | 20 ft (6.1 m) | Galvanized Steel Cable |
| BD-00016 | 13 lb (5.9 kg) | 30 ft (9.1 m) | Galvanized Steel Cable |
| BD-00001 | 18 lb (8.2 kg) | 50 ft (15.2 m) | Galvanized Steel Cable |
| BD-00004 | 19 lb (8.6 kg) | 65 ft (19.8 m) | Galvanized Steel Cable |
Key Features

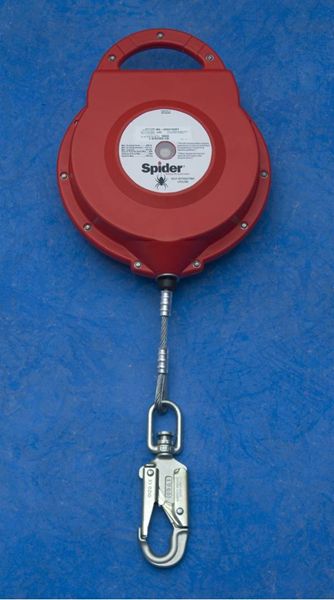

- Integral handle – Wire rope models include an integral handle, making them easy to carry and install.
- Snap hook with swivel – prevents the lifeline from twisting and tangling
- Visual load indicator – indicates the unit must be removed from service
- Narrow payout port – minimizes debris entering unit
- Performance meets the standards: OSHA 1926.502, ANSI Z359.1, ANSI A10.14 and CSA Z259.2.2- 98 Type 2
