ST-19E Demountable Spider Drum Hoist

Self-contained work cage easily disassembles without special tools to pass through a 20 in. (508 mm) diameter opening.

  • Bolted, lightweight aluminum frame is ideal for limited access work in boilers, ships, tanks and stacks.
  • Built-in overload device and overspeed brake
  • Reinforced midair transfer point and wear plates at base
  • Optional 2 ft (0.6 m) SA-1052 and 3 ft (0.9 m) SA-1053 flydecks

Specifications

Part NumberTravel Speed1VoltagePhase/Freq.
ST-19E18 fpm (5.5 mpm)115 V1 Ph 50/60 Hz
1fpm/mpm = feet per minute / meters per minute

Additional Specifications

  • Gross Load Capacity: 1000 lb (453.6 kg)
  • Drum Capacity: 350 ft (106.7 m)

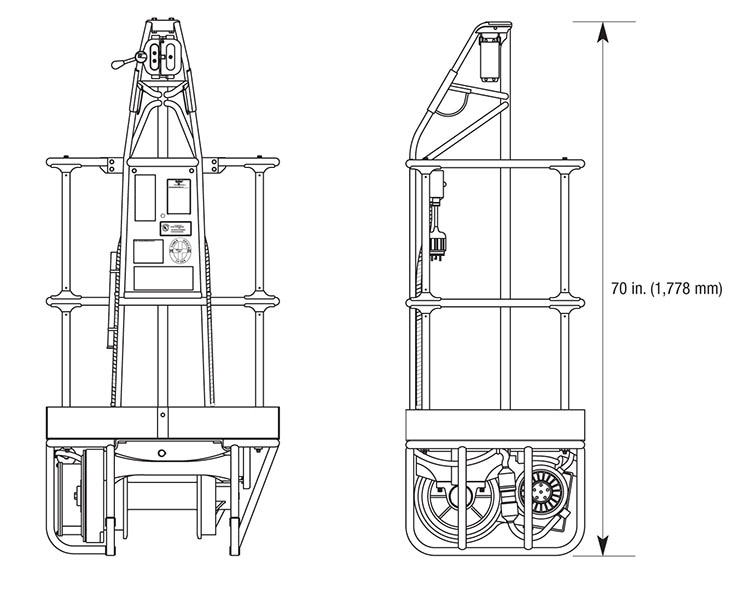

  • Dimensions: 30 x 23 x 70 in (762 x 584 x 1778 mm)
  • Weight: 205 lb (93 kg)
  • Wire Rope Size: 5/16 in (8 mm)
  • Wire Rope Construction: Seale Construction 6 x 19
  • Basket Construction: Aluminum and Steel
  • Voltage Options: 115V single phase (50 and 60 Hz models available)
  • Note: Wire rope assemblies sold separately
