Outrigger Beams

Spider offers outrigger beams with a variety of lengths, maximum outreaches and load capacities to fit your needs. These beams can be used with outrigger towers, gantry frames and a variety of rigging accessories.

  • No truss systems to lose, forget, or learn how to set up

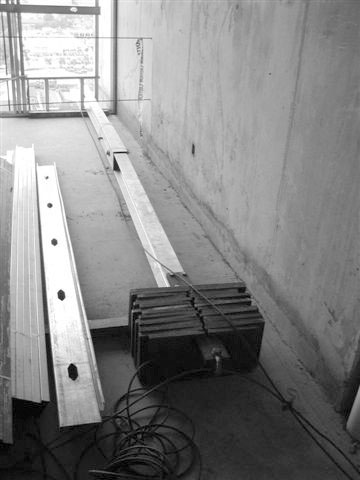

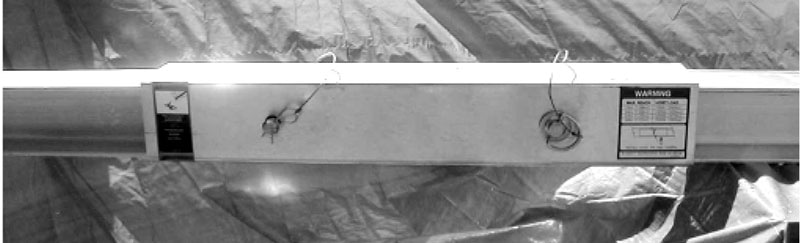

  • No tools needed for assembly; uses the first splice tube assembly ever developed!
  • Safety labels ensure proper set up

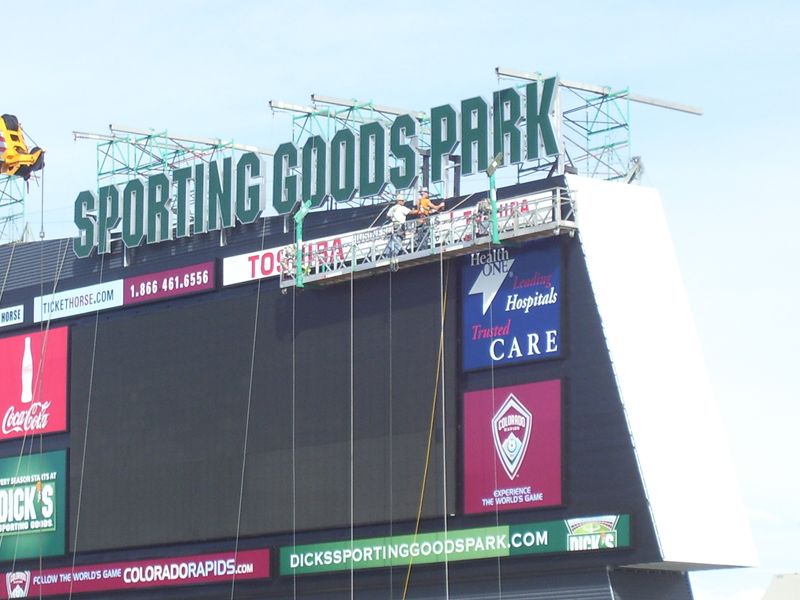

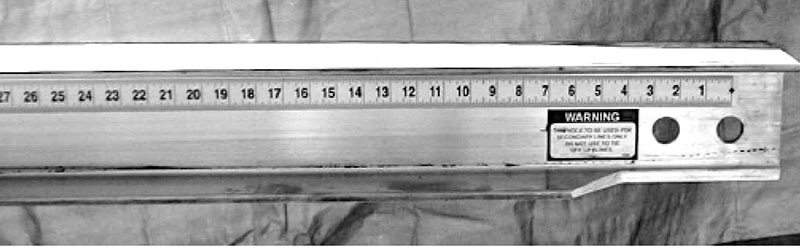

  • A measuring tape label system helps you instantly determine outreach

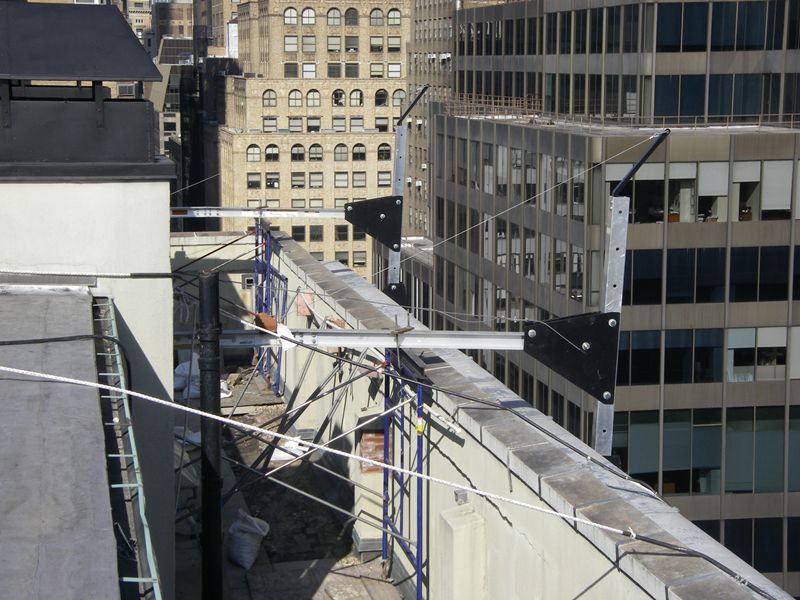

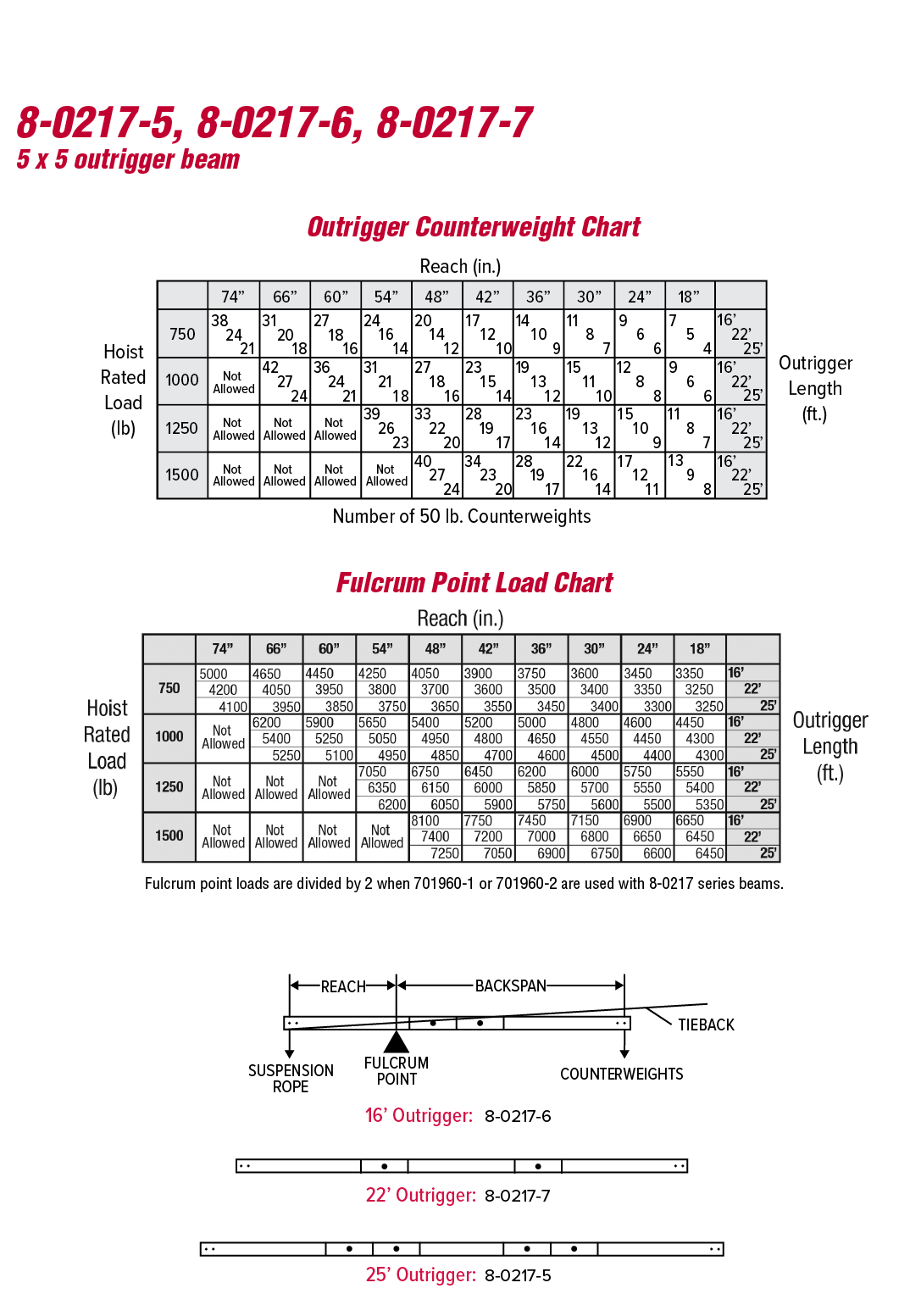

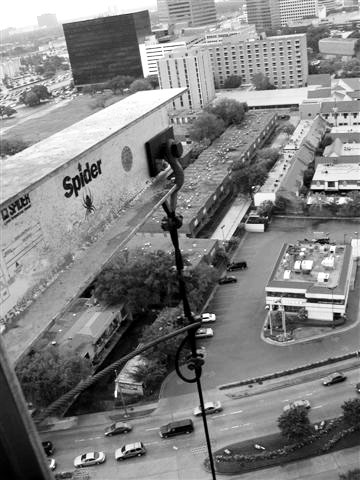

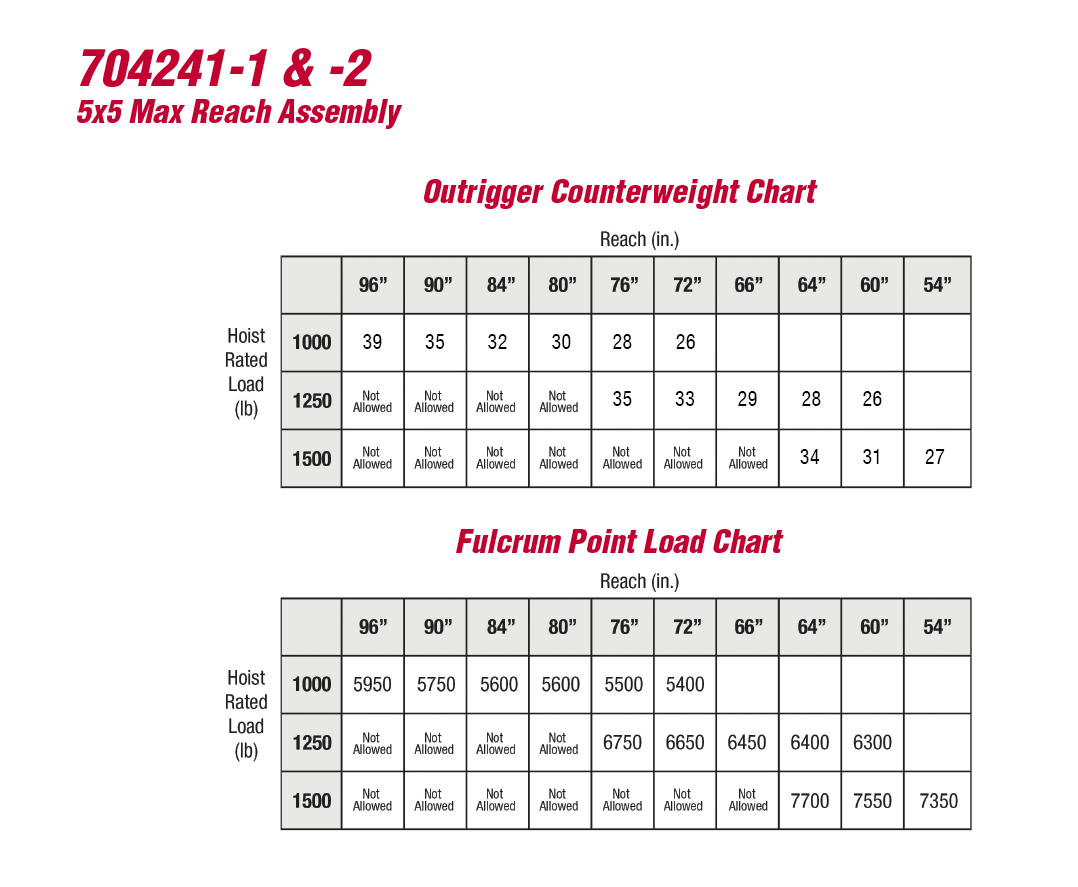

  • Counterweight chart label shows how many 50 lbs. (22.7 kg) weights are required for your outreach: No guesses, no math.

Specifications

Part NumberItem NameTotal LengthMaximum Reach
8-0217-616 ft 5 x 5 Outrigger Beam Kit16 ft (4.9 m)

Includes 2 x 8 ft (2.4 m) beams
with splice tube
48 in (1,219 mm) @ 1,500 lbs. (680.4 kg)
54 in (1,372 mm) @ 1,250 lbs. (567 kg)
66 in (1,676 mm) @ 1,000 lbs. (453.6 kg)
74 in (1,880 mm) @ 750 lbs. (340.2 kg)
8-0217-722 ft 5 x 5 Outrigger Beam Kit22 ft (6.7 m)

Includes 2 x 8 ft (2.4 m) beams,
plus 9 ft (2.7 m) splice tube
48 in (1,219 mm) @ 1,500 lbs. (680.4 kg)
54 in (1,372 mm) @ 1,250 lbs. (567 kg)
66 in (1,676 mm) @ 1,000 lbs. (453.6 kg)
74 in (1,880 mm) @ 750 lbs. (340.2 kg)
8-0217-525 ft 5 x 5 Outrigger Beam Kit25 ft (7.6 m)

Includes 3 x 8 ft (2.4 m) beams,
plus 2 x 3 ft (0.9 m) splice tubes
48 in (1,219 mm) @ 1,500 lbs. (680.4 kg)
54 in (1,372 mm) @ 1,250 lbs. (567 kg)
66 in (1,676 mm) @ 1,000 lbs. (453.6 kg)
74 in (1,880 mm) @ 750 lbs. (340.2 kg)

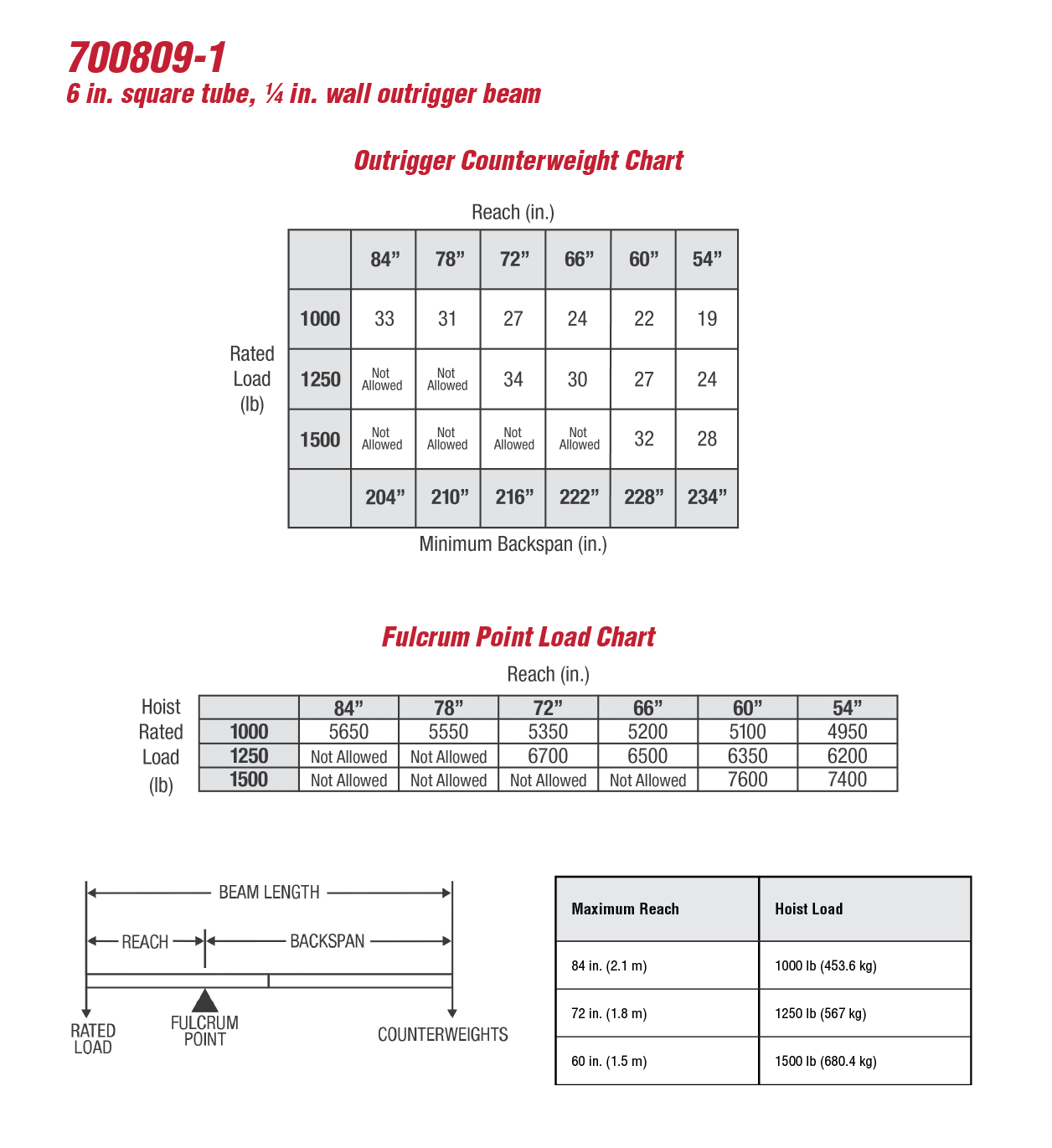

700809-124 ft 6 in. (152 mm) Square Tube Outrigger Beam Kit24 ft (7.3 m)

Includes 2 x 12 ft (3.7 m) beams
60 in (1,524 mm) @ 1,500 lbs. (680.4 kg)
72 in (1,829 mm) @ 1,250 lbs. (567 kg)
84 in (2,134 mm) @ 1,000 lbs. (453.6 kg)
Note: Actual reach will vary depending on the amount of counterweight used.

Additional Specifications

Key Features

  • Beams accept two wire ropes for secondary wire rope safety systems, decreasing the equipment needed for 4-line systems
  • Extensive product labeling simplifies use
  • Front and rear beams are identical, reducing the chance of having the wrong parts available
  • Works with all Spider outrigger stands and most other stands
  • Built by Spider in the USA

Specifications

Part NumberUsed With
704241-1701960-1 Gantry Frames
704241-2704387-1 Gantry Head

Additional Specifications

  • Weight: 54.8 lb (24.9 kg)
  • Heaviest Piece: 19.4 lb (8.8 kg)
  • Construction: Aluminum and Steel
  • Outreach:
    • 5 ft 4 in (1.6 m) at 1,500 lbs. (680.4 kg)
    • 6 ft 4 in (1.9 m) at 1,250 lbs. (567 kg)
    • 8 ft (2.4 m) at 1,000 lbs. (453.6 kg)

Key Features

  • Get more reach and eliminate the hassle of cable-tensioned devices and risk of their improper set-up
  • Simpler installation – set channels in beam web, pin using splice tube pins, slide collars over the ends of the channels and tighten – no drilling!
  • Easily retrofits to standard 5 x 5 outriggers
  • No need to buy and stock a specialized beam when more reach is needed
  • Complete step-by-step set-up labels will eliminate guesswork
  • Engineered and fully tested to meet ANSI SPS 1.1
  • Made by Spider in the USA
