Home / Products / Hoists / Hoist Accessories / Flydecks

Hoists

Flydecks

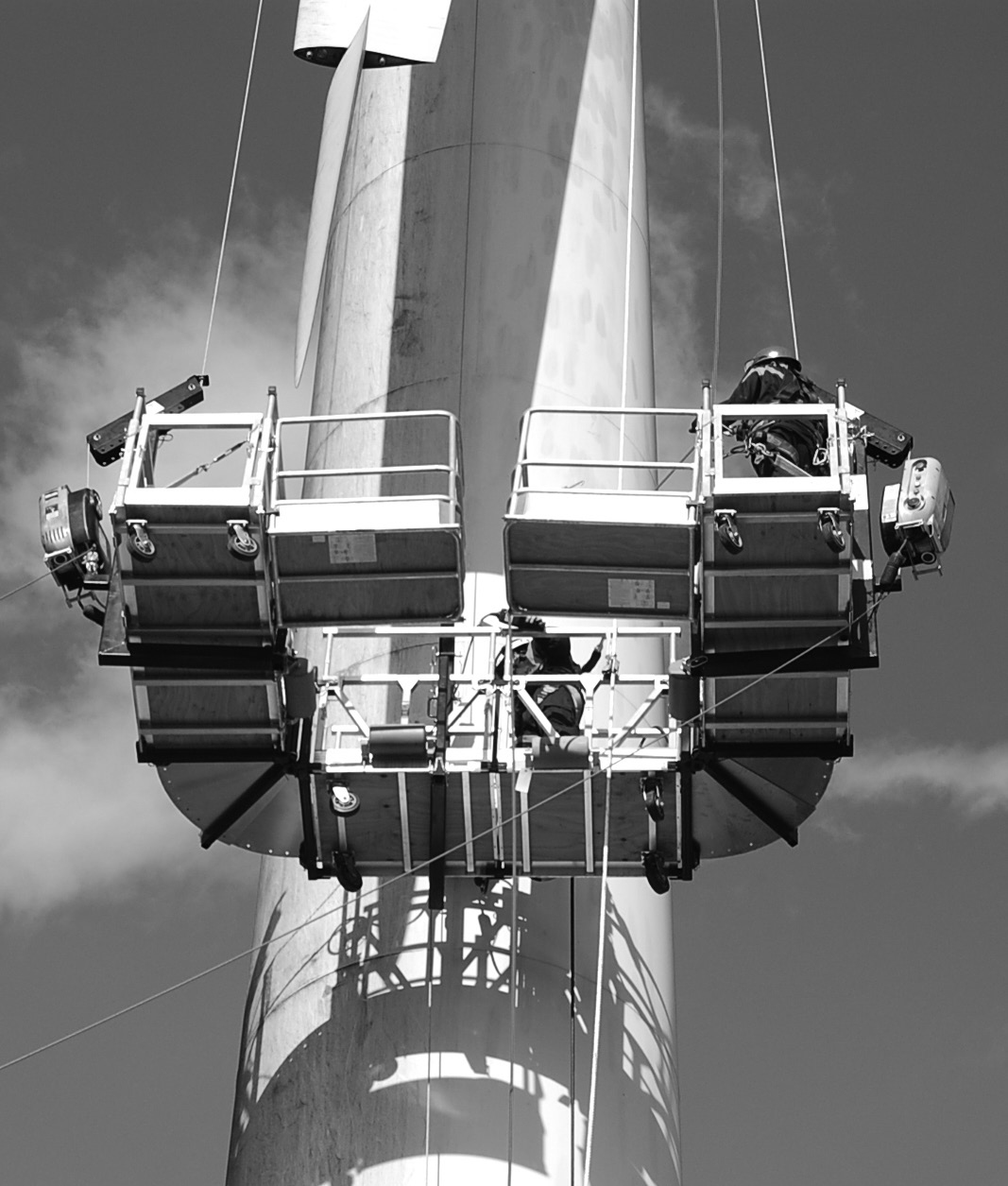

SA-105x Flydecks can be added to ST-17 or ST-180 hoists to provide additional reach as needed. Disassembles to pass through 18 in (457 mm) opening. Flydecks are sold as a set of 2.

View Product Documentation

Specifications

Part NumberItemWidthWeight1Used With
SA-1050Flydeck2 ft50 lb (22.7 kg)ST-17, ST-180, 701086-1 Steel Work Cage
SA-1051Flydeck3 ft72 lb (32.7 kg)ST-17, ST-180, 701086-1 Steel Work Cage
SA-1052Demountable Flydeck2 ft85 lb (38.6 kg)ST-19
SA-1053Demountable Flydeck3 ft87 lb (39.5 kg)ST-19
1 For the pair

Additional Specifications

  • Rated Working Load (each): 250 lb (113.4 kg)
  • Dimensions:
    • SA-1050: 23.56 x 24 x 37.25 in (598 x 610 x 946 mm)
    • SA-1051: 23.8 x 36 x 37.25 in (605 x 914 x 946 mm)
    • SA-1052: 23.9 x 24 x 38.9 in (607 x 610 x 988 mm)
    • SA-1053: 23.9 x 36 x 38.9 in (607 x 914 x 988 mm)
