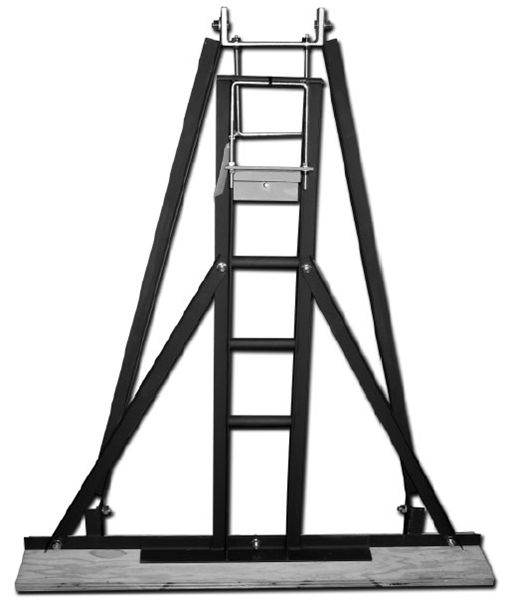

Adjustable Support Stands
Elevates outrigger beam up to 48 in. (1,219 mm) total height with beam positions at 16, 24, 32 and 40 in. (406, 610, 813 and 1,016 mm).
Specifications
| Part Number | Dimensions | Weight | Construction |
|---|---|---|---|

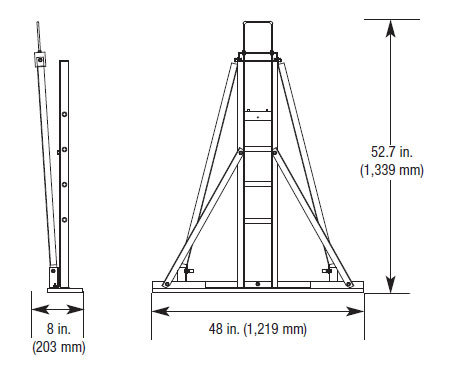

| 1258-2 | 48 x 8 x 52.7 in. (1,219 x 203 x 1,339 mm) | 55 lb (25 kg) | Steel with plywood bracing components |
Key Features
- U-Bolt connection secures beam to stand.
- Wide support base lessens the ability to overturn.
- 49 in. (1,245 mm) base height
- Built by Spider in the USA
Notes

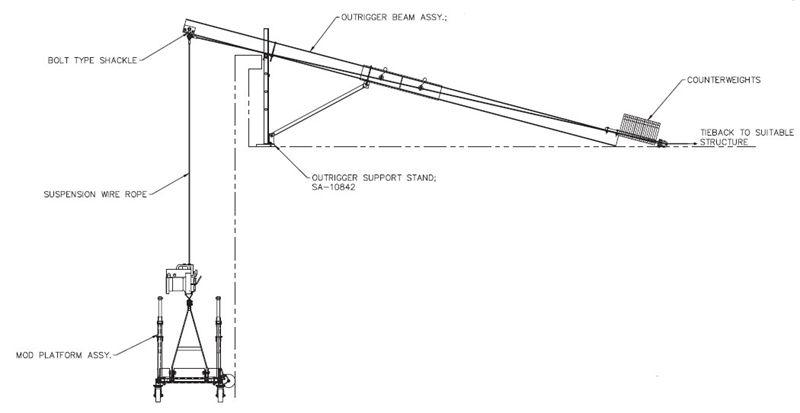

Use with 5×5 or 6×6 Outrigger Beam (8-0217-X, 700809-1)
